產品中心

Products

BYX-BNC

BYX-BNC audio and video signal surge protector

Audio and video signal spd for surge protection of satellite communications, broadcasting and television, video monitoring system, including TV, radio, audio and video equipment field of security. The product conforms to the GB/T18802.21-2004 standard.

kinds of function



1) multilevel protection circuit, residual pressure, strong protective ability.
2) the pressure limiting and current limiting element selects the brand, performance is stable and reliable.
3) through flow capacity, fast response speed.
4) wide frequency band, low insertion loss.
5) High transmission efficiency, strong anti-interference ability.
6) resistence 50. Or 75 optional.
7) convenient and flexible installation, simple and practical maintenance.
8) DIN rail type, equipped with all kinds of coaxial interface, to meet the different needs of clients

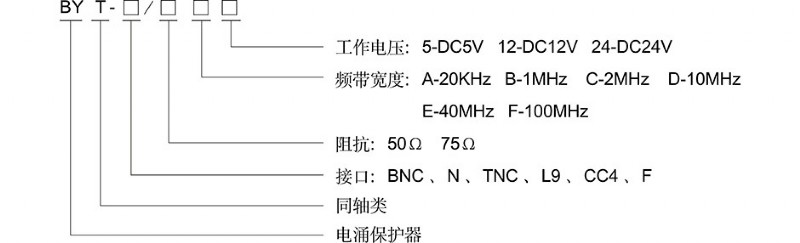

name schedule



technical prarmeters

rated operational voltage Uopv(V) 200(1N50Hz)
Maximum continuous operating voltage Ucpv(V) 320
throuh currentI(kA) 10
AC withstand ability(A/次) 2/5
The impact resistance ability (kA/次) 1.5/10
Voltage protection level Up(kV) 700
failure mood of over-load mood 2

plug loss(dB)

< 0.5
kinds of connection Power supply and control terminals video BNC
proection mood  all modules
material of body Aluminum plate
protection class IP20

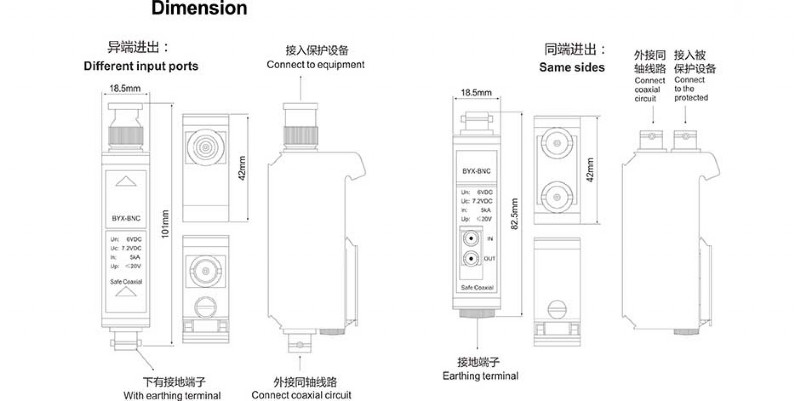

shape and dimensions
