LJ2

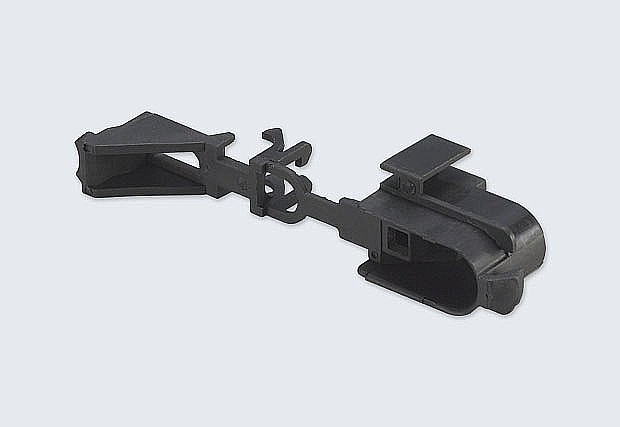

LJ2 power line connection block

LJ2 series connection module of power line is the matching product for roller washing machine,used to take the power line into the inside circuit connection.

Basic parameters and main technical performance index


Insulation resistance ≥100MΩ
The installation force ≤55N
The base of the pull-out force ≥250N
Wire pull force ≥250N
Diameter of wire ≤13mm
Roll-torque 1.33Nm-1.5Nm
Environmental requirement

Products and packaging are in line with the EU RoHS directive 2011/65/EU

using conditions for noraml work


Environmental temperature ranges from 0℃ to 55℃.
Altitude can not be higher than 2500 meters.
Comparative wetness should be less than ninety percents.(when the temperature is more than 25℃)
There is not gas,steam,chemical deposition, dust,explosive and corrosive medium to affect the insulation in the working place.
There is not serious vibration and bumping in the working place.
